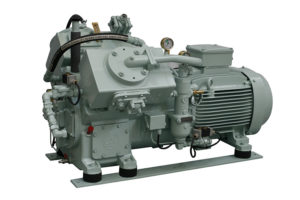

Typhoon Series – 150 to 1500 PSI Compressors, Water Cooled
The Alternative to Air-Cooled Compressors With over 75 years of commercial and naval experience, Sauer Compressors has developed a series of highly competitive, robust, water-cooled compressors. These units are ideal for industrial applications where airflow, high ambient temperatures, and/or ambient noise pose operational difficulties.
| Model No. | Operating Pressure Range | Flow Rate | Required Power | Stages/ Cylinders | Gas/ Medium | |
|---|---|---|---|---|---|---|
 |
WP100 | 150 to 450 PSI | 44.1 to 65.1 SCFM | 21.3 to 31.7 HP | 2/2 | Air, Nitrogen |
| WP200 | 150 to 450 PSI | 70.9 to 110.3 SCFM | 31.4 to 53.1 HP | 2/2 | Air, Nitrogen | |
| WP240 | 150 to 450 PSI | 86.0 to 133.6 SCFM | 38.8 to 65.4 HP | 2/2 | Air, Nitrogen | |
| WP400 | 150 to 450 PSI | 153.3 to 231.8 SCFM | 63.0 to 109.3 HP | 2/3 | Air, Nitrogen | |
| WP3100 | 700 to 1500 PSI | 98.0 to 125.0 SCFM | 60.3 to 82.6 HP | 3/3 | Air, Nitrogen |

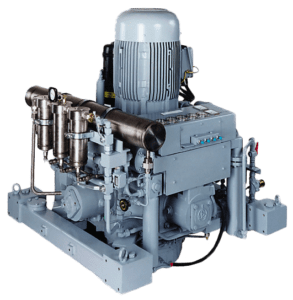

5000 Series – 1500 to 5000 PSI Compressors, Water Cooled
High-Pressure solutions for the most extreme requirements. Our water-cooled, high-pressure compressors are proven worldwide in exceptionally tough applications. Based off our military compressor model that is used for the US Navy, the WP5000 has established itself as one of the most reliable compressors in the industry.
| Model No. | Operating Pressure Range | Flow Rate | Required Power | Stages/ Cylinders | Gas/ Medium | |
|---|---|---|---|---|---|---|
 |
WP5000 | 1500 to 5000 PSI | 54.0 to 89.0 SCFM | 40.2 to 75.1 HP | 4/4 | Air, Nitrogen |
| WP5500 | 1500 to 5000 PSI | 27.0 to 42.0 SCFM | 20.4 to 37.5 HP | 4/4 | Air, Nitrogen |

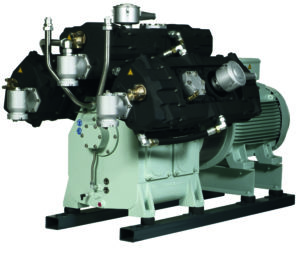

6000 Series – 125 to 7000 PSI Compressors, Water Cooled
With more than 70 years of innovative design, Sauer Gas Compressors have long convinced customers of their worth in numerous fields of application for process engineering that requires high quality compressed gas or air. Experience and know-how make it possible as well as individually designed compressor packages. Today we offer 3- and 4-stage gas compressors for up to 5075 PSI in an extensive, and standardized, product range.
| Model No. | Operating Pressure Range | Flow Rate | Required Power | Stages/ Cylinders | Gas/ Medium | |
|---|---|---|---|---|---|---|
 |
WP6305 | 300 to 725 PSI | 335.0 to 470.0 SCFM | 140.0 to 268.0 HP | 3/6 | Air, Nitrogen, Helium, Natural Gas, Bio-Methane |
| WP6310 | 600 to 1450 PSI | 293.0 to 434.0 SCFM | 147.0 to 255.0 HP | 3/6 | Air, Nitrogen, Helium, Natural Gas, Bio-Methane | |
| WP6442 | 1750 to 6000 PSI | 341.0 to 344.0 SCFM | 233.0 to 275.0 HP | 4/6 | Air, Nitrogen, Helium, Natural Gas, Bio-Methane | |
| WP6550 | 2900 to 7000 PSI | 160.0 to 237.0 SCFM | 105.0 to 197.0 HP | 5/6 | Air, Nitrogen, Natural Gas, Bio-Methane | |
| WP6550 BasSeal He-B | 2500 to 5000 PSI | 200.0 to 205.0 SCFM | 215.0 HP | 5/6 | Helium |
