Power meets versatility

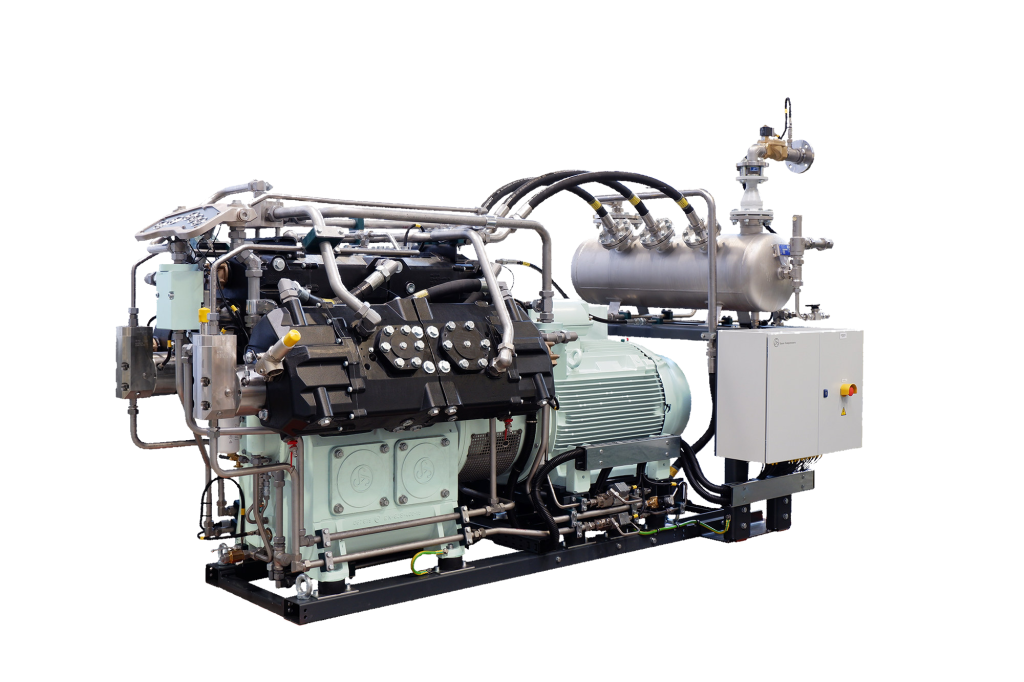

The water-cooled compressors of the SAUER 6000 series have a modular design with up to six cylinders, which allows many different variations with final pressures of up to 7251 psi and a drive power of up to 230 kW. As the largest immersion piston compressors of their kind, they allow maximum performance even in the most difficult conditions.
Outstanding characteristics:
- High flexibility in compression unit configuration
- Low-vibration operation through special W- or V-arrangement of compression units
- Highly integrated and fully operational unit for foundation-free installation
- Anti-vibration mounts for structure borne noise isolation
- Integrated cooling water circuit with high performance water coolers for each cylinder
- Extensive protection systems with temperature and pressure sensors available in each stage
- Compression of several technical gases possible due to gastight crankcase and low leakage rates
- Variable frequency drive possible with defined speeds – optimization of every process
Every compressors comes with:
- Complete compressor check at final pressure, including 3.1 inspection certificate
- Long operating life with guaranteed spare parts availability (at least 25 years) from stock
Pressure: max. 7251 psig
Suction Pressure: max. 290 psig
Volume Flow: 200 – 1,000 m³/h
Rated Power: 120 –250 kW
Media: Air, Nitrogen, Helium, Natural Gas, Bio-methane, Hydrogen
Features
Magnetic coupling
The wear-free magnetic coupling drive between compressors and motor not only guarantees hermetical gas-tightness but also is extremely low-maintenance and operates with maximum reliability.
Integrated Water Cooling
The most efficient cooling solution for high drive power, reliable and easy to maintain.
ATEX variant available
Solutions in compliance with ISO 80079-34:2020 and the European ATEX directive 2014/34/EU.
Hermetically gas-tight design available
The reliable, hermetically gas-tight compressor design ensures that neither gas can escape nor ambient air can contaminate the compression medium.

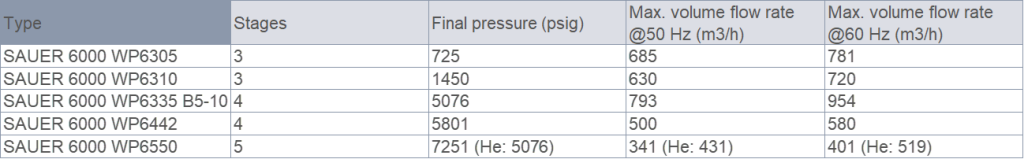

Technical Data
SAUER 6000 series compressor types
Disclaimer: The performance data are general guide values for the compression of air or nitrogen. They may change depending on the compression medium and ambient conditions.
* Max. volume flow for air or nitrogen compression according to ISO 1217 ref. 1.013 bara 20°C @ max. pressure.
