Nitrogen is a widely used industrial gas due to its low production cost and inert properties, making it ideal for applications as a protective gas. In the pharmaceutical industry, nitrogen is essential for tablet coating processes, where a nitrogen-based protective atmosphere enables precise, closed-system coating via spray nozzles, requiring compressors to pressurize the gas mixture for consistent application. In broader industrial applications, nitrogen compressors are critical when existing nitrogen pressure is insufficient, such as in laser cutting or reverse-flow cleaning of process filters. When gas purity and process safety are essential, HAUG compressors deliver reliable performance with their oil-free, dry-running, and gas-tight design, ensuring the highest standards in nitrogen compression
HAUG Nitrogen compressors offer:
- No gas contamination by oil
- Technically tight, in operation and at standstill
Download
HAUG Product Overview
PDF | 2.39 MB
Contact
Need assistance?
We’re here to help:
HAUG Neptune
Final Pressure: max. 1450 psig
Suction Pressure: max. 188 psig
Volume Flow: 50 – 100 m³/h
Rated Power: 2.0 – 7.5 kW
Media: Any gas
HAUG Sirius
Final Pressure: max. 1450 psig
Suction Pressure: max. 435 psig
Volume Flow: 400 –1000 m³/h
Rated Power: 7.5 – 30 kW
Media: Any gas

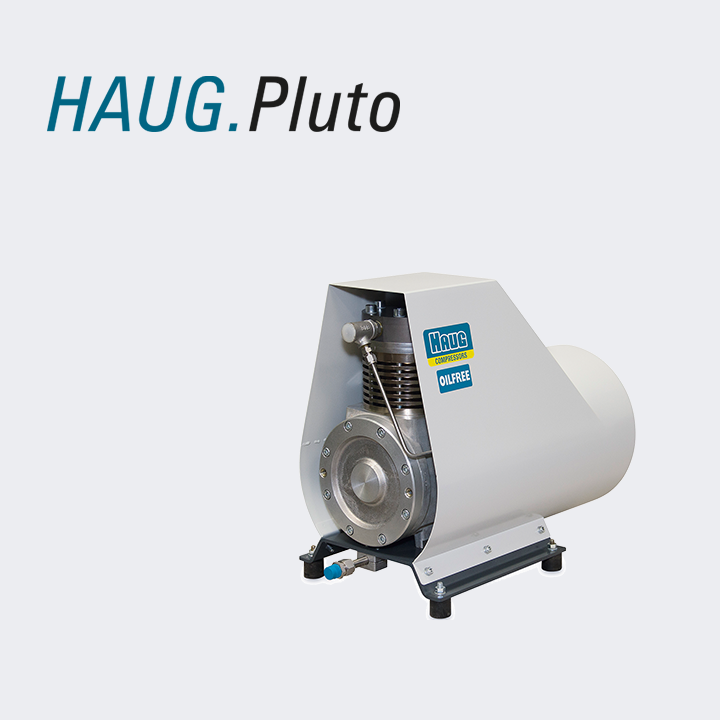

HAUG Pluto
Final Pressure: 145 – 638 psig
Volume Flow: 100 – 435 m³/h
Rated Power: 35 – 105 kW
Media: Air, Nitrogen, SF6
HAUG Sirius NanoLoc
Final Pressure: max. 6526 psig
Suction Pressure: max. 435 psig
Volume Flow: 20 – 66 m³/h
Rated Power: max. 11 – 30 kW
Media: Any gas
HAUG Mercure
Final Pressure: max. 1450 psig
Suction Pressure: max. 217 psig
Volume Flow: 30 – 70 m³/h
Rated Power: max. 3.0 – 5.5 kW
Media: Air, N2, He, CNG, Bio-methane, O2, SF6
