High-pressure know-how – made in Germany
The renowned Sauer range of piston compressors is developed and manufactured by specialists from our centre of excellence at the headquarters of J.P. Sauer & Sohn Maschinenbau GmbH in Kiel, Germany. These oil-lubricated machines are available for pressures up to 7251 psig and designed for continuous operation. The reciprocating models allow compression in up to five stages. A total of up to six cylinders are mounted in a star, V or W arrangement. The compressors are the ideal solution for operation at atmospheric suction pressure or use as gas-tight boosters with pre-pressures up to 362 psig.
SAUER Typhoon
Pressure: 145 –1450 psig
Volume Flow: 60 – 395 m³/h
Rated Power: 15 – 90 kW
Media: Air, Nitrogen

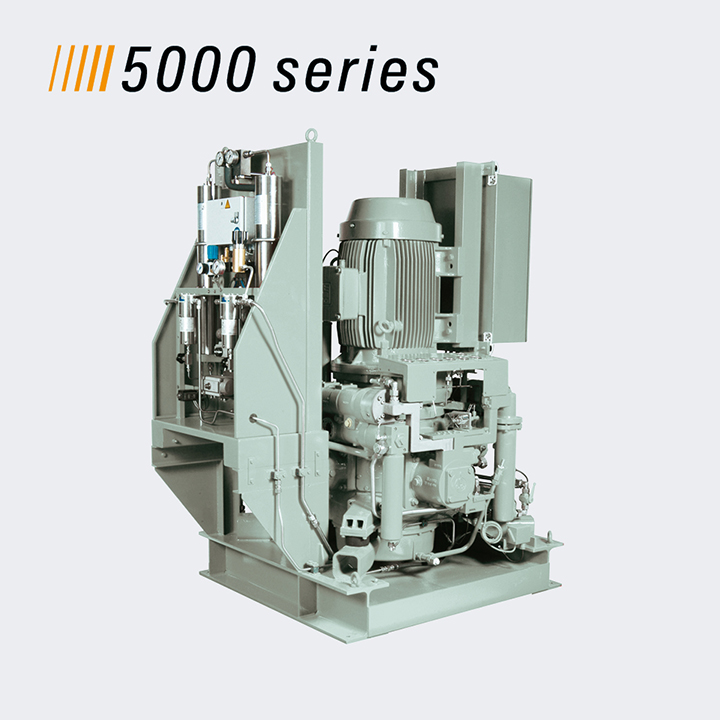

SAUER 5000
Pressure: 2175 – 5801 psig
Volume Flow: 50 – 140 m³/h
Rated Power: 20 – 75 kW
Media: Air, Nitrogen
SAUER 6000
Pressure: max. 7251 psig
Suction Pressure: max. 290 psig
Volume Flow: 200 – 1,000 m³/h
Rated Power: 120 – 250 kW
Media: Air, Nitrogen, Helium, Natural Gas, Bio-methane, Hydrogen
