Compact, Robust, Reliable.

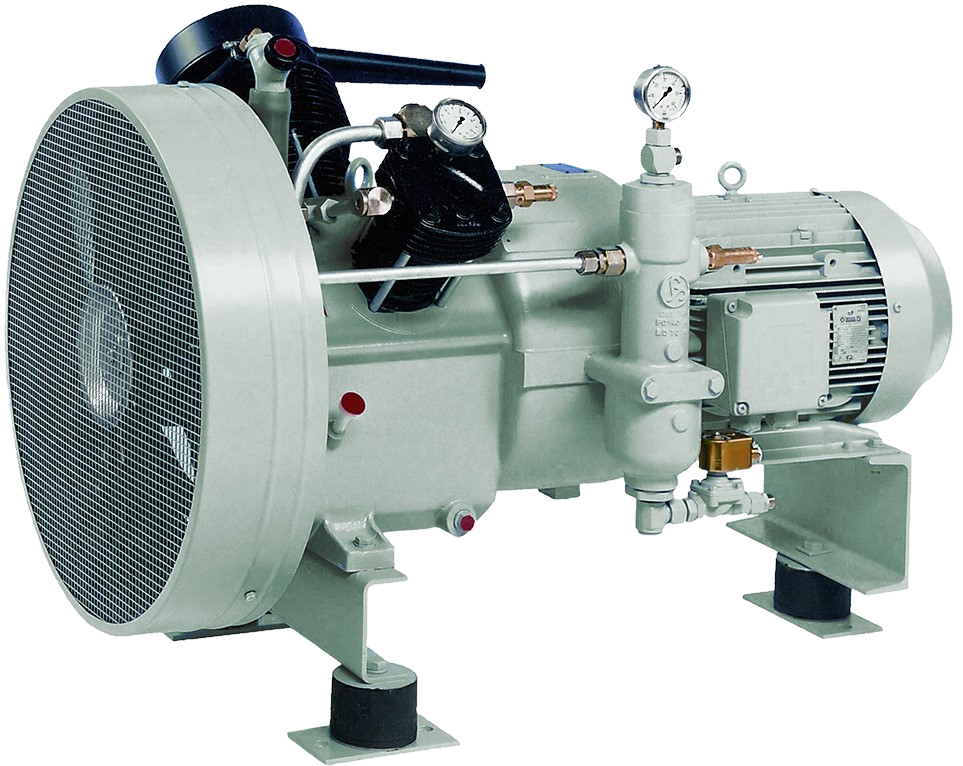

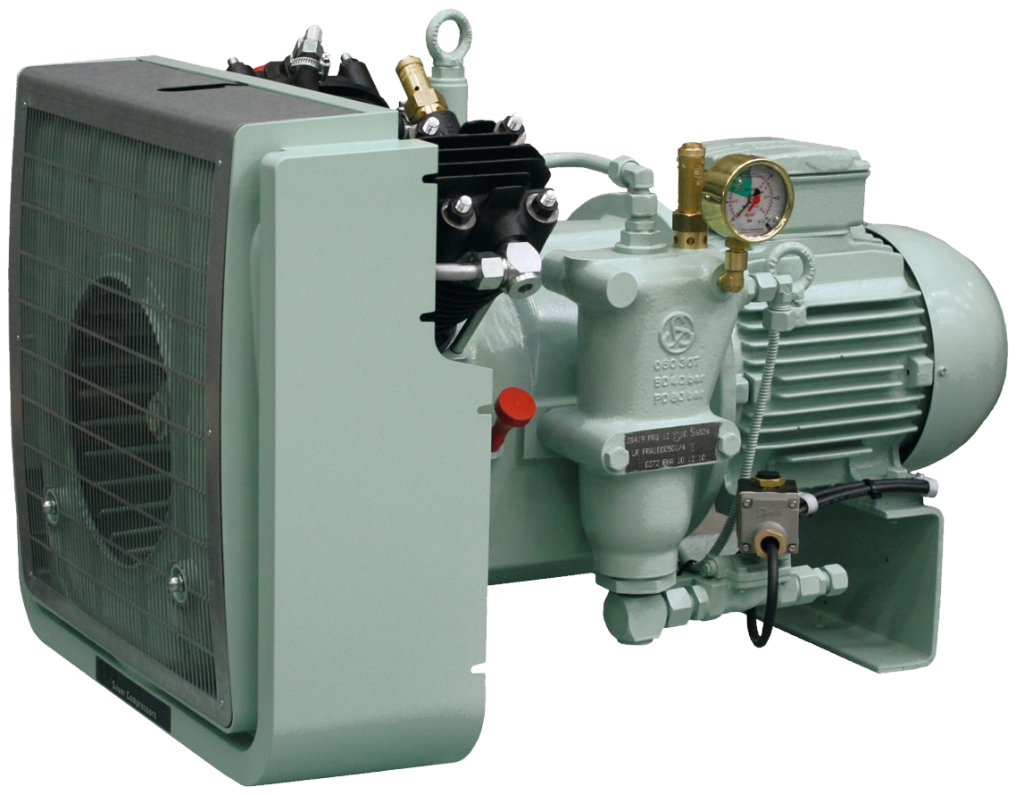

The 2-stage air-cooled compressors of the MISTRAL series have been a key contributing factor to the reputation of Sauer Compressors as reliable workhorses. Little has changed in the design of these simple and robust machines, which have been an integral part of the product range for 75 years and deliver unmatched reliability, efficiency and ease of maintenance.
Outstanding characteristics:
- Simple, rugged design
- High efficiency cooling fan
- Reliable operation, even under extreme conditions (55 °C ambient temperature)
- Heavy duty, rigid flange connection between motor and compressor
Every compressors comes with:
- Complete compressor check at final pressure, including 3.1 inspection certificate
- Long operating life with guaranteed spare parts availability (at least 25 years) from stock
Pressure: 145 – 580 psig
Suction Pressure: max. 116 psig
Volume Flow: 8 – 80 m³/h (Booster: max. 160 m³/h)
Rated Power: 3 –18.5 kW
Media: Air, Nitrogen
Features
Direct Drive
This power transmission provides maximum efficiency, reliability and ease of maintenance even in the most difficult conditions.
Highly Efficient Air Cooling
Proven and easily maintainable design with high cooling performance.
24/7 Continuous Duty
The robust compressor design allows reliable continuous operation and thus ensures maximum availability.
V-design cylinder arrangement
The cylinder arrangement ensures smooth running thanks to ideal mass balancing.
Turnkey solution with canopy
Available as turnkey solution in sound proof canopy – silent and ready for operation
Technical Data
SAUER Mistral series compressor types
Disclaimer: The performance data are general guide values for the compression of air or nitrogen. They may change depending on the compression medium and ambient conditions.
* Max. volume flow for air or nitrogen compression according to ISO 1217 ref. 1.013 bara 20°C @ max. pressure.
