The bechmark in international shipping.

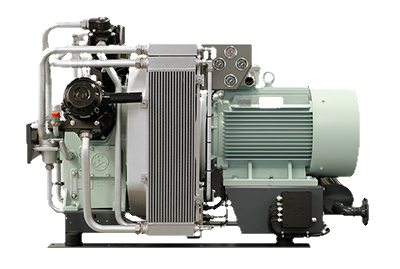

Exclusively developed for commercial shipping, our Levante 3-stage air-cooled compressors have quickly become the must-have solution for the maritime industry. A robust, compact design allows these low-maintenance compressors to fit easily into any engine room. Our newly developed CubeCooler is installed between motor and compressor to optimize airflow, reduced the re-cooling temperatures by a third and thus boosted inter-cooling efficiency. Last but not least, the user-friendly human machine interface with an integrated gauge panel has made Levante compressors even easier to operate.
Outstanding characteristics:
- State-of-the-art 3-stage air cooled compressor, latest design by world market leader with focus on easiest installation and outmost safe and reliable operation in marine conditions.
- Heavy duty, rigid flange connection between motor and compressor
Every compressors comes with:
- Complete compressor check at final pressure, including 3.1 inspection certificate
- Long operating life with guaranteed spare parts availability (at least 25 years) from stock
Pressure: 435 psig
Volume Flow: 180 – 460 m³/h
Rated Power: 37 –98 kW
Media: Air
Features
Direct Drive
This power transmission provides maximum efficiency, reliability and ease of maintenance even in the most difficult conditions.
Highly Efficient Air Cooling
Proven and easily maintainable design with high cooling performance.

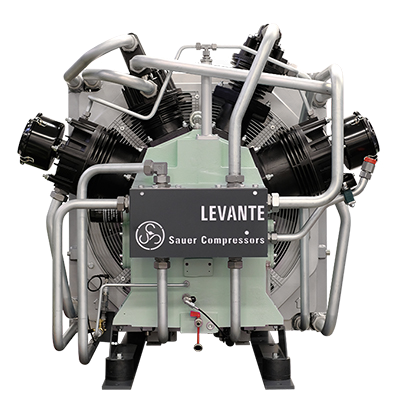

W-design cylinder arrangements
The cylinder arrangement ensures smooth running thanks to ideal mass balancing.
Technical Data
SAUER Levante series compressor types
Disclaimer: The performance data are general guide values for the compression of air or nitrogen. They may change depending on the compression medium and ambient conditions.
* Max. volume flow for air or nitrogen compression according to ISO 1217 ref. 1.013 bara 20°C @ max. pressure.
