Proven solution for high pressure demands.

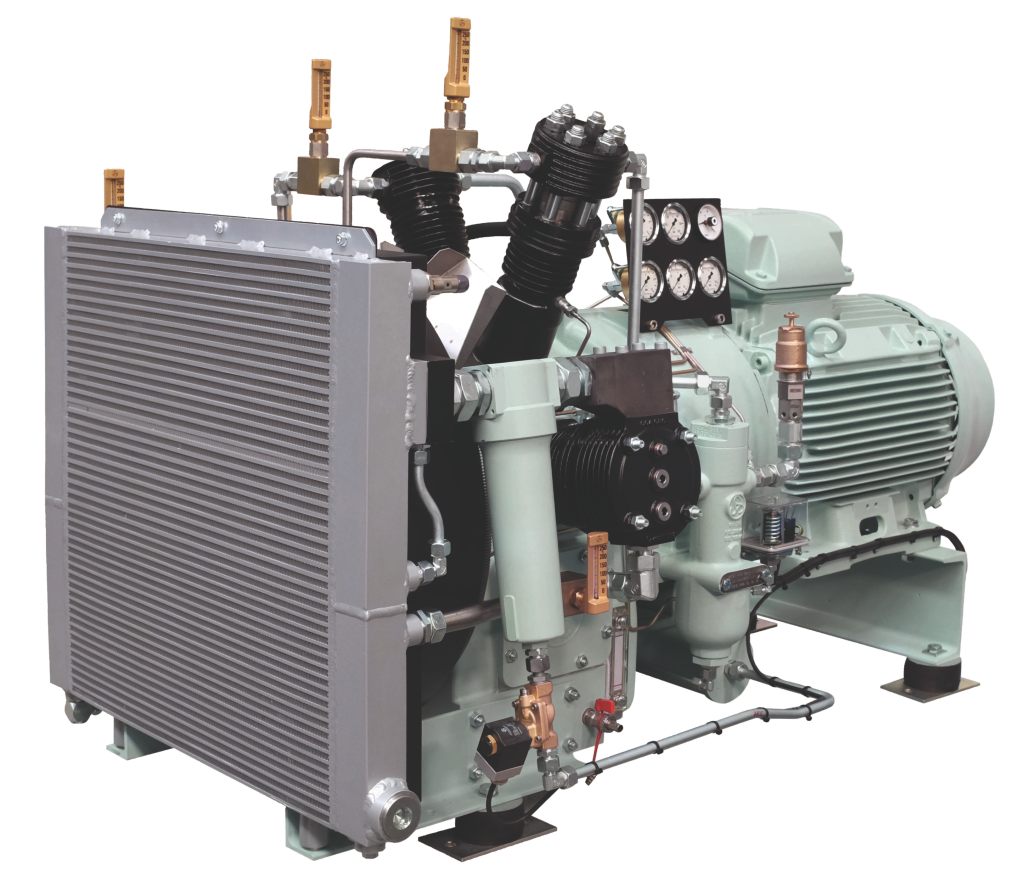

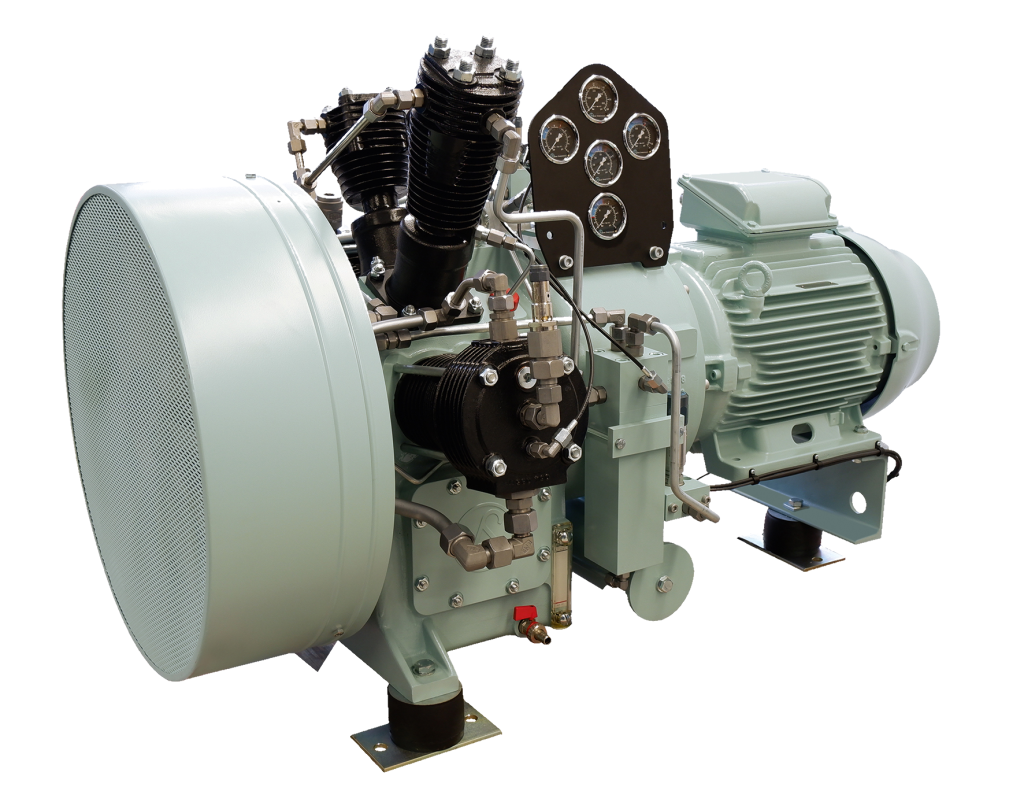

The 4-stage air-cooled high pressure compressors of the SAUER Hurricane series are the top choice for demanding applications up to 5801 psi. Thanks to their directly-driven and highly-efficient air cooling system, they provide maximum reliability, efficiency and ease of maintenance even in the most difficult conditions.
Outstanding characteristics:
- Total compression divided into 4 individual stages – better cylinder cooling, lower oil requirement
- Highly efficient cooling fan – lower operating temperatures, less maintenance
- Automatic drainage between stages
- Combination of suction and discharge valves
- Solid piston and standard piston rings in high pressure stages
- Heavy duty, rigid flange connection between motor and compressor
Every compressors comes with:
- Complete compressor check at final pressure, including 3.1 inspection certificate
- Long operating life with guaranteed spare parts availability (at least 25 years) from stock
Pressure: 2175 – 5801 psig
Suction Pressure: max. 116 psig
Volume Flow: 20 – 130 m³/h
Rated Power: 15 –55 kW
Media: Air, Nitrogen, Helium, Natural Gas, Bio-methane, Hydrogen
Features
Atex Variant Available
Solutions in compliance with ISO 80079-34:2020 and the European ATEX directive 2014/34/EU.
Highly Efficient Air Cooling
Proven and easily maintainable design with high cooling performance.
W-design cylinder arrangements
The cylinder arrangement ensures smooth running thanks to ideal mass balancing.
Gas tight design available
The reliable, gas-tight compressor design ensures that neither gas can escape nor ambient air can contaminate the compression medium.
Turnkey solution with canopy
Available as turnkey solution in sound proof canopy – silent and ready for operation
Technical Data
SAUER Hurricane series compressor types
Disclaimer: The performance data are general guide values for the compression of air or nitrogen. They may change depending on the compression medium and ambient conditions.
* Max. volume flow for air or nitrogen compression according to ISO 1217 ref. 1.013 bara 20°C @ max. pressure.
