Air-cooled excellence for unmatched performance.

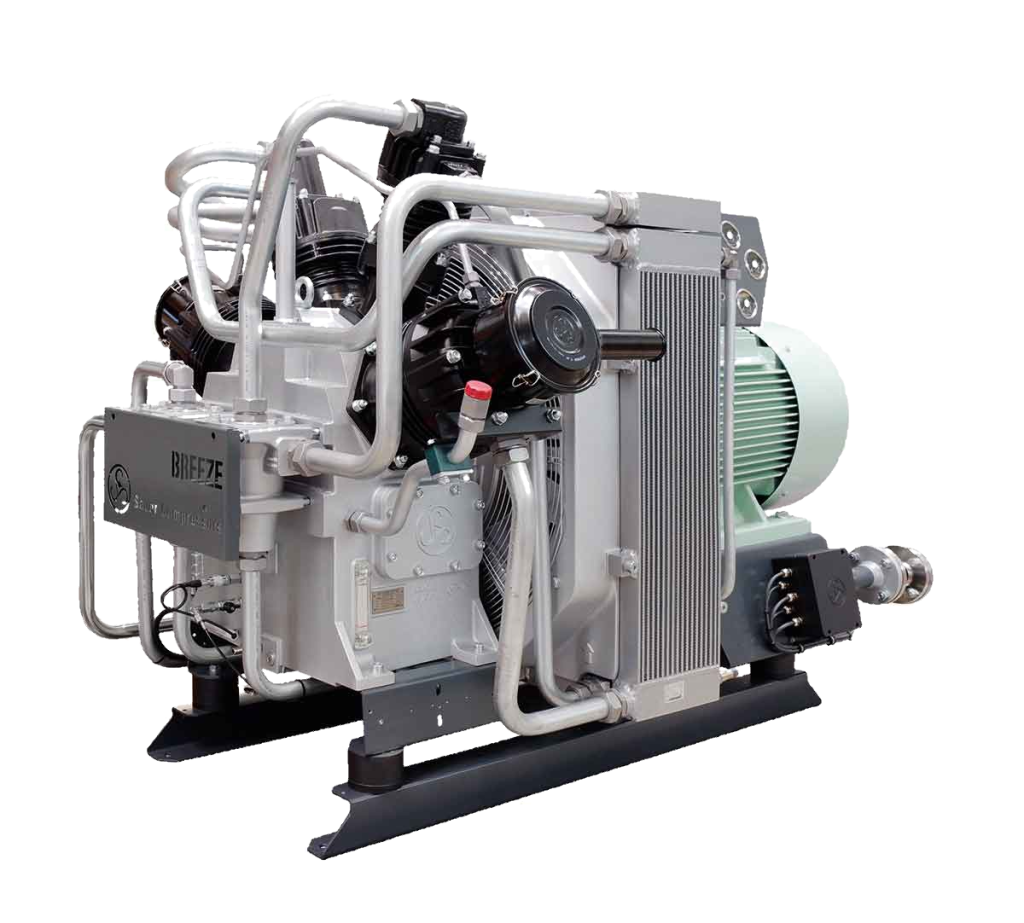

The 3-stage compressors of the SAUER Breeze series are based on the same modular design as the SAUER Orkan series. It thus benefits equally from the highly efficient Cube Cooler cooling system and is ideally suited for demanding industrial applications up to 638 psi.
Outstanding characteristics:
- Reliable operation, even under extreme conditions (55 °C ambient temperature)
- Heavy duty, rigid flange connection between motor and compressor
Every compressors comes with:
- Complete compressor check at final pressure, including 3.1 inspection certificate
- Long operating life with guaranteed spare parts availability (at least 25 years) from stock
Pressure: 145 – 638 psig
Volume Flow: 100 – 435 m³/h
Rated Power: 35 –105 kW
Media: Air, Nitrogen
Features
Direct Drive
This power transmission provides maximum efficiency, reliability and ease of maintenance even in the most difficult conditions.
Highly Efficient Air Cooling
Proven and easily maintainable design with high cooling performance.
24/7 Continuous Duty
The robust compressor design allows reliable continuous operation and thus ensures maximum availability.
Sauer ecc 4.0 Compatible
Operate the compressor with the latest in control technology from our in-house team of developers.
Technical Data
SAUER Breeze series compressor types
Disclaimer: The performance data are general guide values for the compression of air or nitrogen. They may change depending on the compression medium and ambient conditions.
* Max. volume flow for air or nitrogen compression according to ISO 1217 ref. 1.013 bara 20°C @ max. pressure.
